Edelbrock 1406 Vacuum Lines - Hot Rod Forum In researching the Edelbrock 1406 I discovered some things on my set up don't quite match the Edelbrock Diagram or some of the online videos I watched. My 3/8" PCV Port is connected to the gear box via a 3/8" to 1/4" T and the Manifold Vacuum Port is plugged off. Where to Hook Up Vacuum Lines On A Holley Carburetor Learn More: In this video, we cover where to attach the various vacuum connections on a Holley Carburetor.

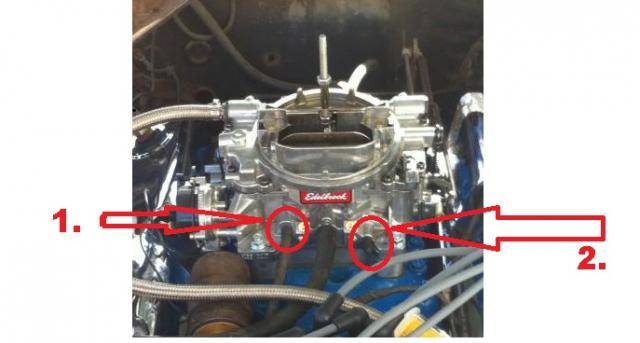

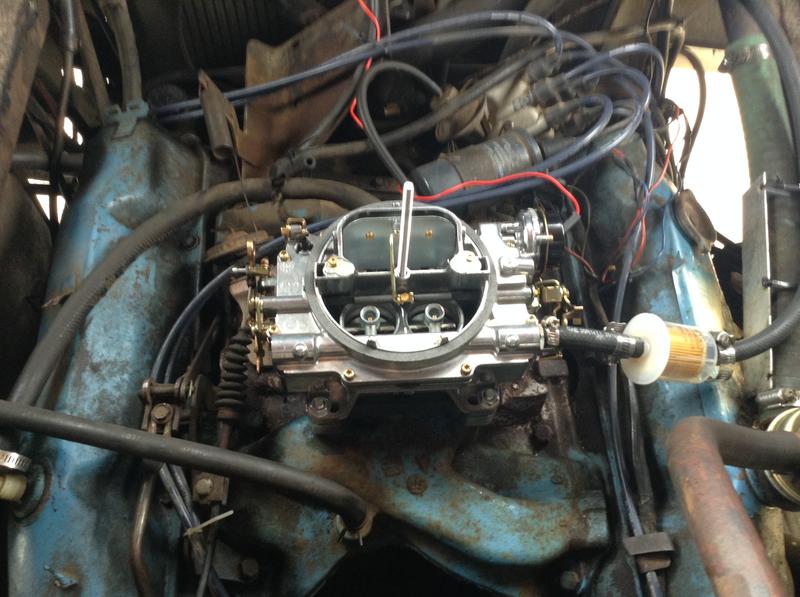

Edelbrock 1406 Vacuum connections - Hot Rod Forum The driver side vacuum port is manifold vacuum, the passenger side is ported vacuum. You want the vacuum modulator hooked to a manifold vacuum port, the PCV valve hose can go to the large center port, the power brake booster uses manifold vacuum and can either tee off (i.e. share) the PCV port or (preferably) use the intake manifold port you have.
